Uo-Chikyu Precision Needle Files

Hiroshima Files' most popular line of Uo-Chikyu precision files are their Swiss-pattern needle file sets. These files have had applications in model building and jewellery manufacturing for many years. We've found that they also have a home in luthiers' studios. They're perfect for working on the fine details of shell, wood, plastic, and some metals.

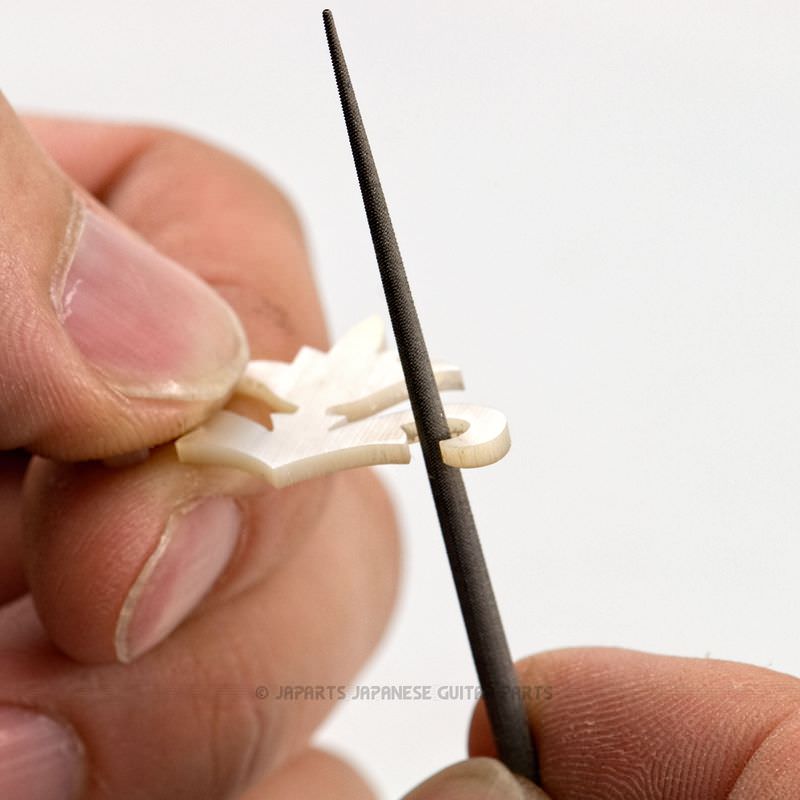

  • Uo-Chikyu 04-1203 Round

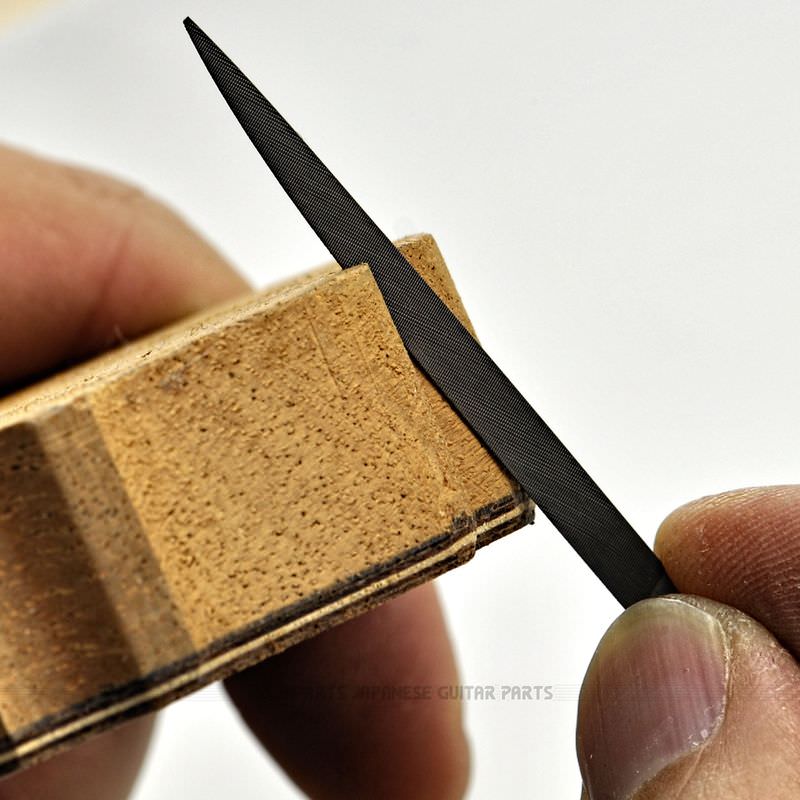

  • Uo-Chikyu 04-1209 Knife

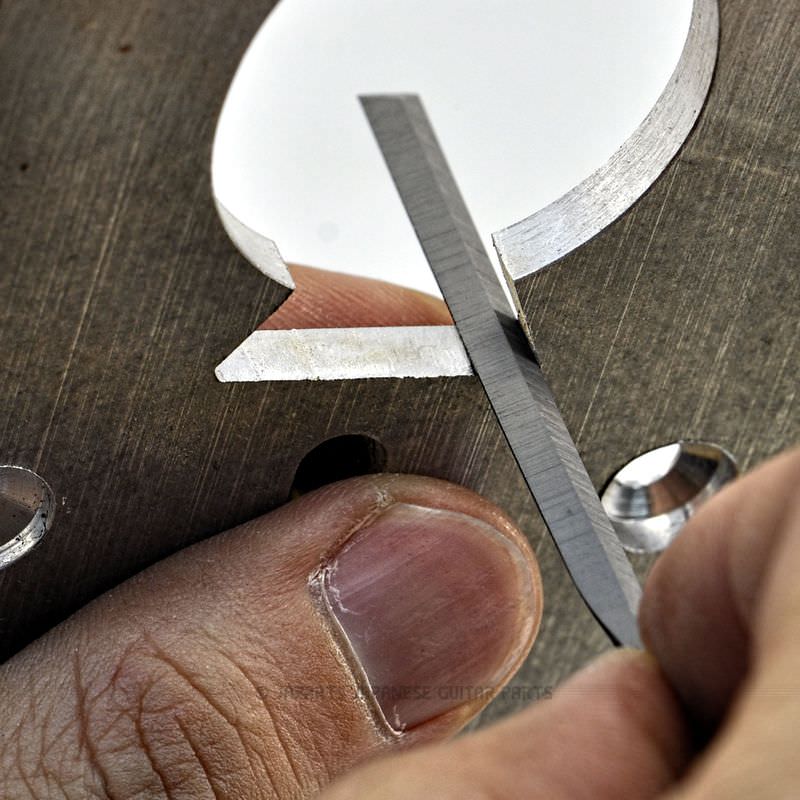

  • Uo-Chikyu 04-1212 Hand Leaf

Needle File Sets

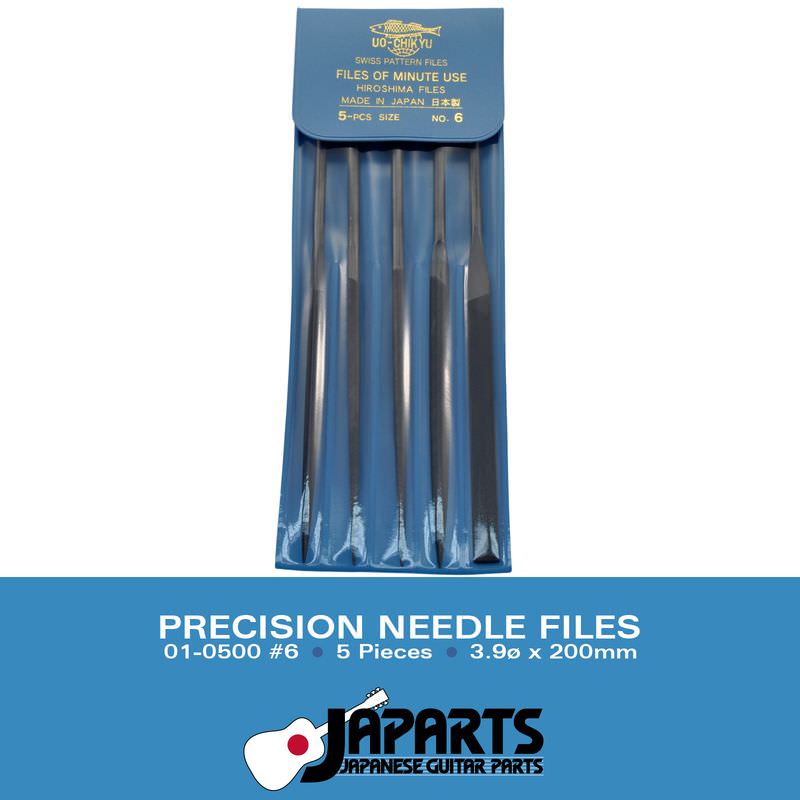

Uo-Chikyu Precision Needle Files 5-pc set
$38.00
Precision Needle Files 5-pc set

Every file in the 5-piece precision needle file set has a length of 200mm and a handle diameter of 3.9mm. The roughness that we buy standard is #6 (125) but they are also available in #4 (100), #3 (90), and #0 (65).

SKU: 01-0500
SKU Shape Cut Dim.*
01-0501 Hand 7.6 x 1.5 90
01-0502 Half-round 6.2 x 2.3 90
01-0503 Round 3.9 x 3.9 90
01-0504 Square 3.3 x 3.3 90
01-0505 3-Square 5.0 x 5.0 90
* Cut dimensions: blade width by blade thickness by cut length. All measurements are millimeters unless otherwise specified.

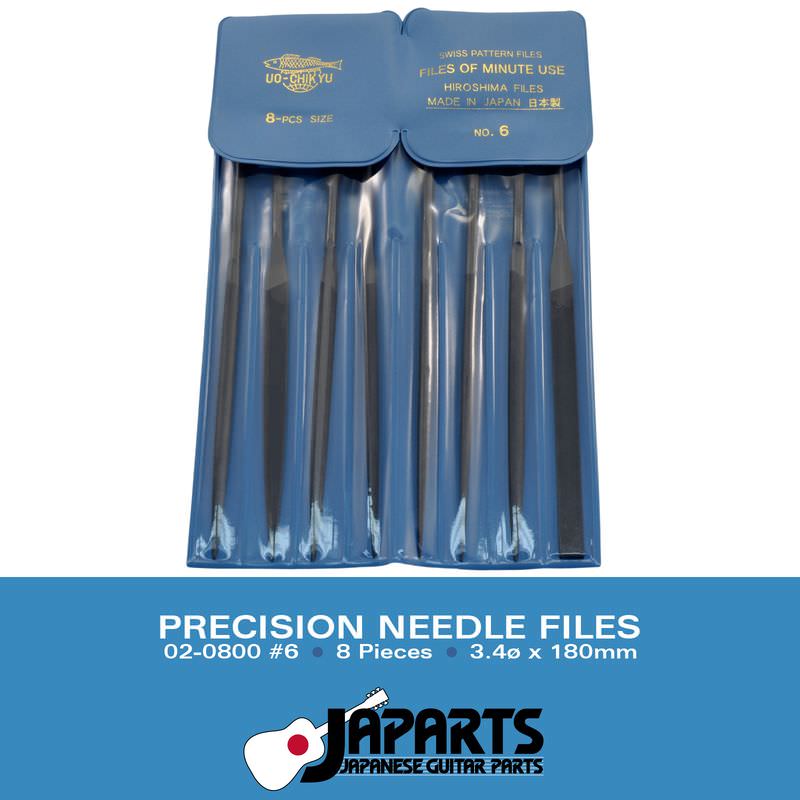

Uo-Chikyu Precision Needle Files 8-pc set
$55.00
Precision Needle Files 8-pc set

Every file in the 8-piece precision needle file set has a length of 180mm and a handle diameter of 3.4mm. The roughness that we buy standard is #6 (130) but they are also available in #3 (95).

SKU: 02-0800
SKU Shape Cut Dim.*
02-0801 Hand 6.7 x 1.3 85
02-0802 Half-round 5.2 x 2.1 85
02-0803 Round 3.4 x 3.4 85
02-0804 Square 2.8 x 2.8 85
02-0805 3-Square 4.2 x 4.2 85
02-0806 Barette 5.2 x 2.3 85
02-0807 Flat 6.9 x 1.5 85
02-0808 Crossing 4.4 x 2.7 85
* Cut dimensions: blade width by blade thickness by cut length. All measurements are millimeters unless otherwise specified.

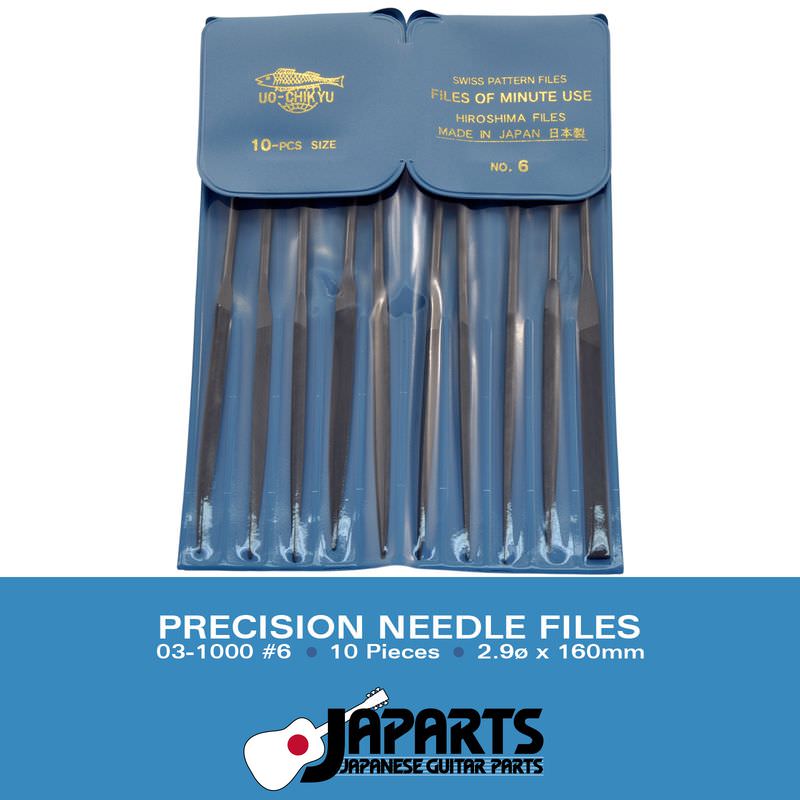

Uo-Chikyu Precision Needle Files 10-pc set
$65.00
Precision Needle Files 10-pc set

Every file in the 10-piece precision needle file set has a length of 160mm and a handle diameter of 2.9mm. The roughness that we buy standard is #6 (140) but they are also available in #3 (100).

SKU: 03-1000
SKU Shape Cut Dim.*
03-1001 Hand 5.7 x 1.2 65
03-1002 Half-round 4.5 x 1.8 65
03-1003 Round 2.9 x 2.9 65
03-1004 Square 2.5 x 2.5 65
03-1005 3-Square 3.7 x 3.7 65
03-1006 Barette 4.5 x 1.8 65
03-1007 Flat 6.0 1.1 65
03-1008 Crossing 3.7 x 2.2 65
03-1009 Knife 4.5 x 2.2 65
03-1010 Steigrad 4.5 x 1.8 65
* Cut dimensions: blade width by blade thickness by cut length. All measurements are millimeters unless otherwise specified.

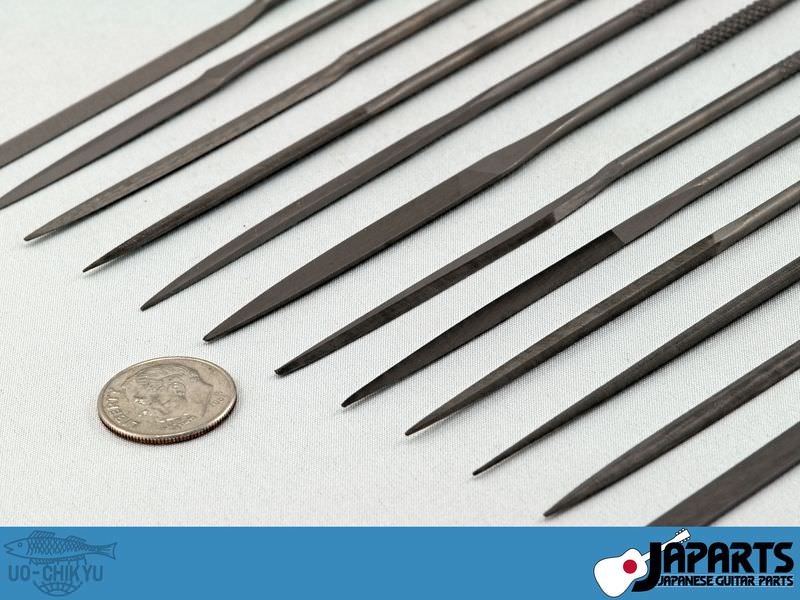

Uo-Chikyu Precision Needle Files 12-pc set
$79.00
Precision Needle Files 12-pc set

Every file in the 12-piece precision needle file set has a length of 140mm and a handle diameter of 2.4mm. The roughness that we buy standard is #6 (160) but they are also available in #3 (120).

SKU: 04-1200
SKU Shape Cut Dim.*
04-1201 Hand 5.0 x 1.0 60
04-1202 Half-round 4.0 x 1.4 50
04-1203 Round 2.4 x 2.4 60
04-1204 Square 2.0 x 2.0 50
04-1205 3-Square 3.0 x 3.0 50
04-1206 Barette 3.8 x 1.2 50
04-1207 Flat 5.0 1.0 50
04-1208 Crossing 3.0 x 2.0 50
04-1209 Knife 4.0 x 1.2 50
04-1210 Steigrad 3.5 x 1.5 50
04-1211 Flat Leaf 4.5 x 1.5 38
04-1212 Hand Leaf 4.5 x 1.5 50
* Cut dimensions: blade width by blade thickness by cut length. All measurements are millimeters unless otherwise specified.
Machine Files
These tiny round files make great general-purpose precision tools. We carry them in two sizes.

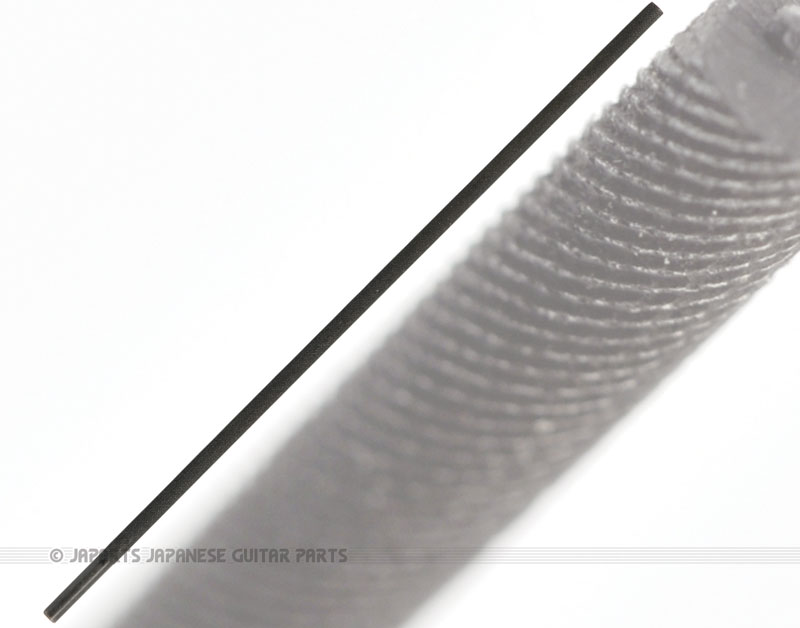

Uo-Chikyu 09-2000 2.0mm round machine file
2.0mm Machine File
Round machine file with a diameter of 2.0mm and length of 100mm.
SKU: 90-2000
$12

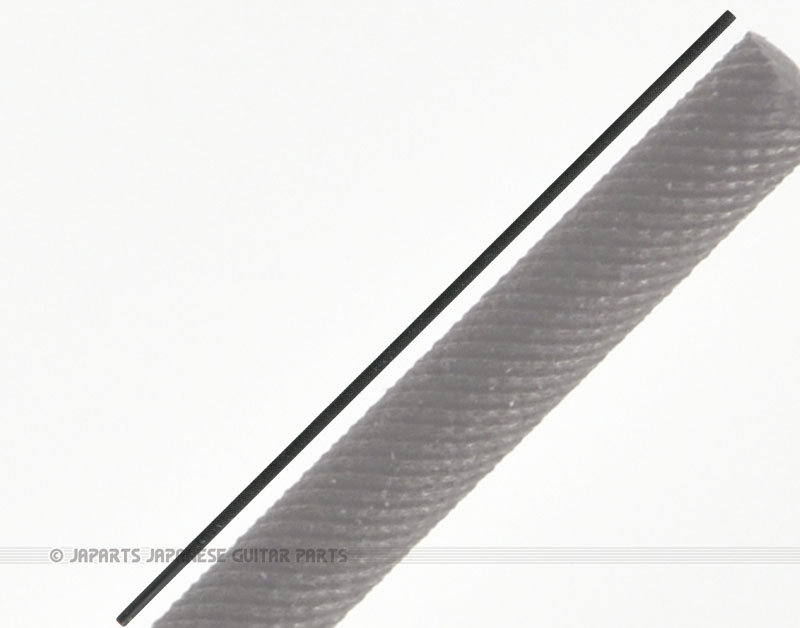

Uo-Chikyu 09-1500 1.5mm round machine file
1.5mm Machine File
Round machine file with a diameter of 1.5mm and length of 100mm.
SKU: 90-1500
$12
